The

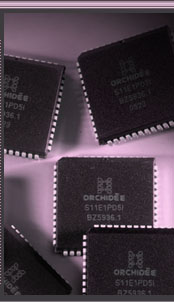

Orchidée Semiconductor S11 family of
8-bit microcontrollers are pin-for-pin compatible
with the industry-standard
MC68HC11™ products. Several versions
of the product family are currently available
including obsolete and legacy
products. The S11 has been designed to be
cycle-for-cycle identical to the MC68HC11™.
Fabricated in 0.5u Embedded
Flash technology the S11 also offers faster
(e.g. 30usec total delay time) programming
of the non-volatile memory. All features and
peripherals of the standard components are
included in the various versions of the S11. |
|
|
|
Version
|
RAM
|
EEPROM
|
ROM
|
Timers
|
Comm
|
A/D
|
|
|
A0
|
256
|
-
|
-
|
IC/OC,RTI,WDOG,PA
|
SPI,SCI
|
8Ch/8b
|
|
|
A1
|
256
|
512
|
-
|
IC/OC,RTI,WDOG,PA
|
SPI,SCI
|
8Ch/8b
|
|
|
D0
|
192
|
-
|
-
|
IC/OC,RTI,WDOG,PA
|
SPI,SCI
|
-
|
|
|
E0
|
512
|
-
|
-
|
IC/OC,RTI,WDOG,PA
|
SPI
|
8Ch/8b
|
|
|
E1
|
512
|
512
|
-
|
IC/OC,RTI,WDOG,PA
|
SPI,SCI
|
8Ch/8b
|
|
|
I4
|
512
|
4k+128
|
-
|
IC/OC,RTI,WDOG,PA
|
SPI,SCI
|
8Ch/8b
|
|
 S11
Family
Datasheet
|
|
|
|
 |
|
 |
|
|
